Difference between GA-B75M-D3V and GA-B75M-D3H?

[Matt B]

Hi,

Noticed someone running a GA-B75M-D3V with coreboot but that it hadn't had
a status report since 2017. I did notice that GA-B75M-D3H is still around
though with a status from may of 2019.

Is the GA-B75M-D3H supported in the latest master? What's the difference
between these two?

Thanks,
     -Matt

[Paul Menzel]

Dear Matt,

Am 25.03.20 um 03:36 schrieb Matt B:
> Noticed someone running a GA-B75M-D3V with coreboot but that it
> hadn't had a status report since 2017. I did notice that GA-B75M-D3H
> is still around though with a status from may of 2019.
>
> Is the GA-B75M-D3H supported in the latest master?

Maybe the board owners know, but why do you assume it’s broken, if there
is a success report from May 2019?
> What's the difference between these two?

Before writing your post, did you check out the source for yourself?
Please do so.

Commit 1bffc4bd (mb/gigabyte/ga-b75m-d3{h,v}: Switch to variant setup)
[1] sets them up as variants.

Also run:

$ diff -ur
src/mainboard/gigabyte/ga-b75m-d3h/variants/{ga-b75m-d3v,ga-b75m-d3h}

Then you see, that besides some license header difference, GPIO 17
differs, the GA-B75M-D3H misses the HDA verb configuration, and it looks
like it has one more HDMI connector.

Kind regards,

Paul

[1]: https://review.coreboot.org/c/coreboot/+/32708

[Angel Pons]

Hi,

On Wed, Mar 25, 2020 at 7:13 AM Paul Menzel  wrote:
> Dear Matt,
>
> Am 25.03.20 um 03:36 schrieb Matt B:
> > Noticed someone running a GA-B75M-D3V with coreboot but that it
> > hadn't had a status report since 2017. I did notice that GA-B75M-D3H
> > is still around though with a status from may of 2019.
> >
> > Is the GA-B75M-D3H supported in the latest master?

Both of them are supported. However, board_status doesn't take
variants into account (it shows them as the "parent" board).
> Maybe the board owners know, but why do you assume it’s broken, if there
> is a success report from May 2019?

I guess the question was about the GA-B75M-D3V. In any case, both are
pretty similar.
> > What's the difference between these two?

Well, Gigabyte has pictures of their boards, so why not check it out
yourself? You can look up both models on your favorite search engine.
In any case, here's a picture of each:

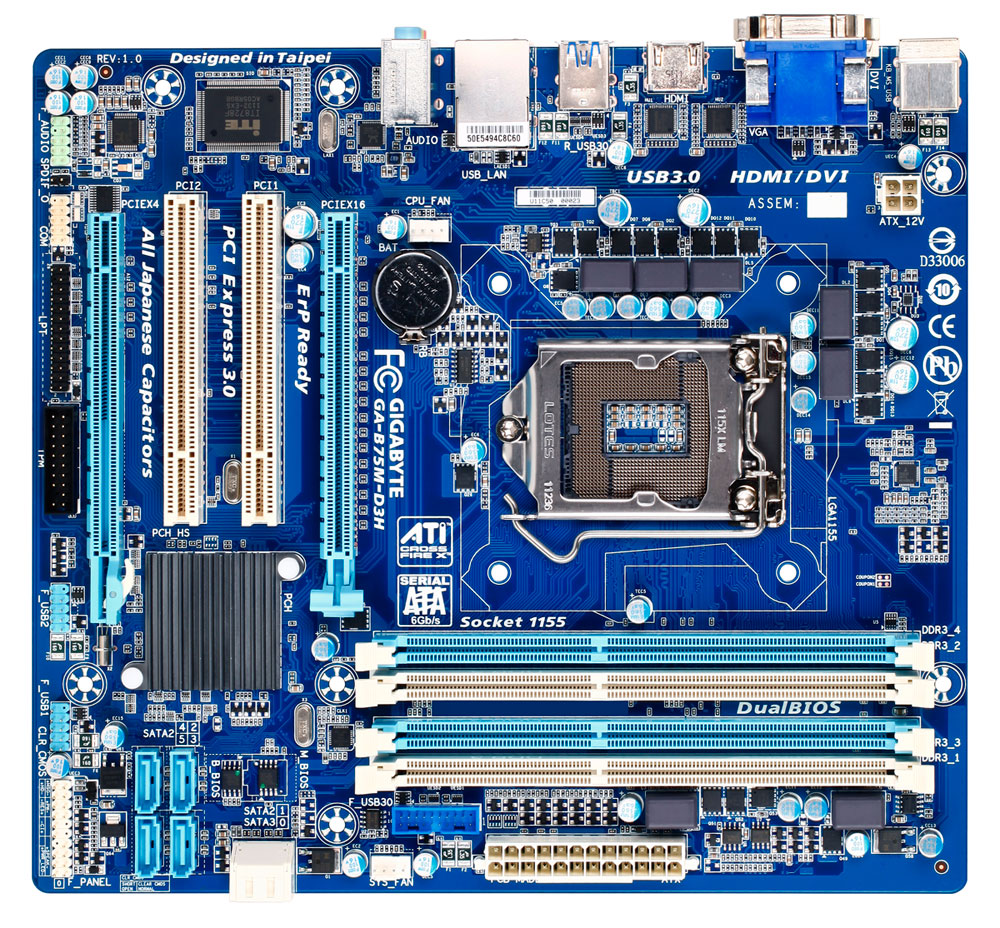

GA-B75M-D3H: https://www.gigabyte.com/FileUpload/Product/2/4150/5670_big.jpg

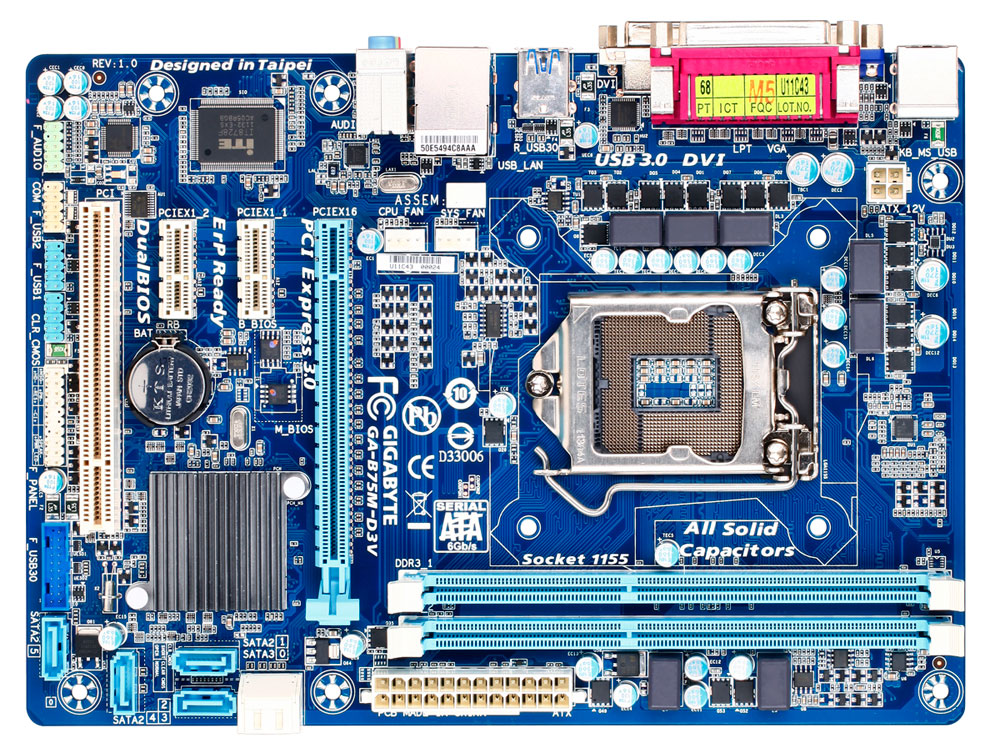

GA-B75M-D3V: https://www.gigabyte.com/FileUpload/Product/2/4151/5674_big.jpg

So, the D3H has two extra DIMM slots, another PCI slot, a single PCIe
x4 slot (note the four pairs of capacitors between the PCIe slot and
the "All Japanese Capacitors" text), HDMI and a TPM connector.
> Before writing your post, did you check out the source for yourself?
> Please do so.
>
> Commit 1bffc4bd (mb/gigabyte/ga-b75m-d3{h,v}: Switch to variant setup)
> [1] sets them up as variants.

In layman's terms, if mainboards can be turned into variants, that any
of them is known to be working implies that the other variants are
working as well.
> Also run:
>  $ diff -ur
>
> src/mainboard/gigabyte/ga-b75m-d3h/variants/{ga-b75m-d3v,ga-b75m-d3h}
>
> Then you see, that besides some license header difference, GPIO 17
> differs, the GA-B75M-D3H misses the HDA verb configuration, and it looks
> like it has one more HDMI connector.

Paul, comparing the source code isn't very useful, as it might be
wrong. It is best to draw conclusions from the mainboards themselves,
especially given that visual comparison (or even comparing the
manufacturer's specifications) is straightforward.

For example, have you checked out the change you have linked? More
specifically, the single line change of this file:
https://review.coreboot.org/c/coreboot/+/32708/16/src/mainboard/gigabyte/ga-...
> Kind regards,
>
> Paul
>
> coreboot mailing list -- [e-mail]
> To unsubscribe send an email to [e-mail]

Best regards,

Angel Pons
